Valve-gate melt delivery
Runner layout, nozzle position, thermal control, cooling and cavity filling are treated as one connected production system for IML and thin-wall packaging moulds.
Visual engineering record
Each section links a real Hengqi image with the engineering purpose it supports. Buyers can understand what is reviewed, what is manufactured and what evidence is checked before delivery.
01 / System architecture
Manifold layout, nozzle length, gate position, cavity arrangement and service access are reviewed while the mould structure is still being defined.
This creates space for cooling, wiring, pneumatic or hydraulic control and maintenance without forcing avoidable compromises at assembly.

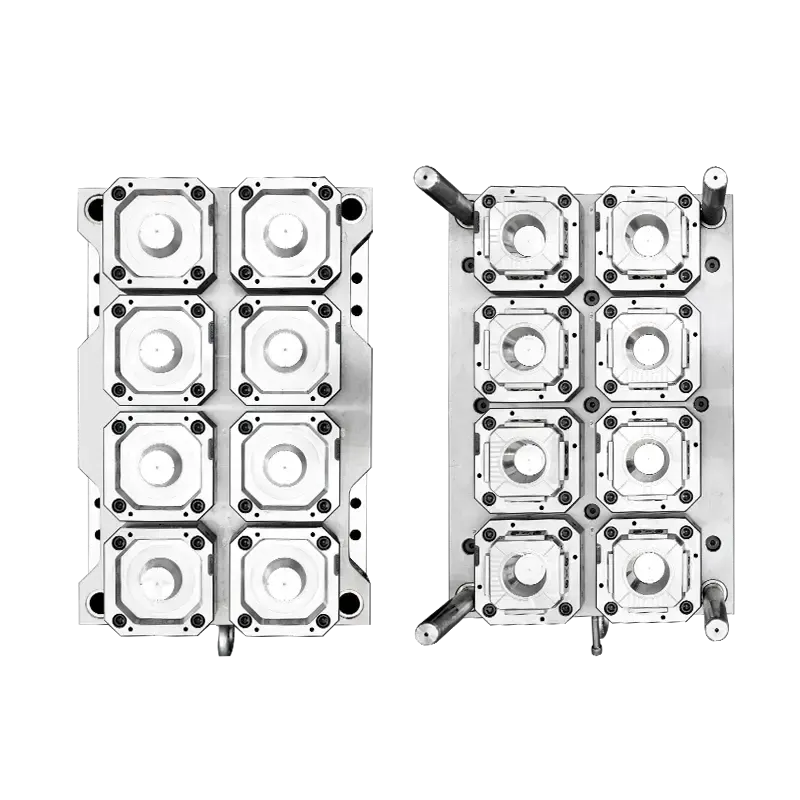

02 / Cavity distribution
Equal runner length alone does not guarantee equal parts. Channel geometry, product thickness, gate condition, cavity layout and thermal behaviour influence the filling result.
The engineering review considers how those variables interact before the design is released.
03 / Precision integration
Hot runner performance relies on the positional relationship between the manifold, nozzles, gates, seals and mould plates.

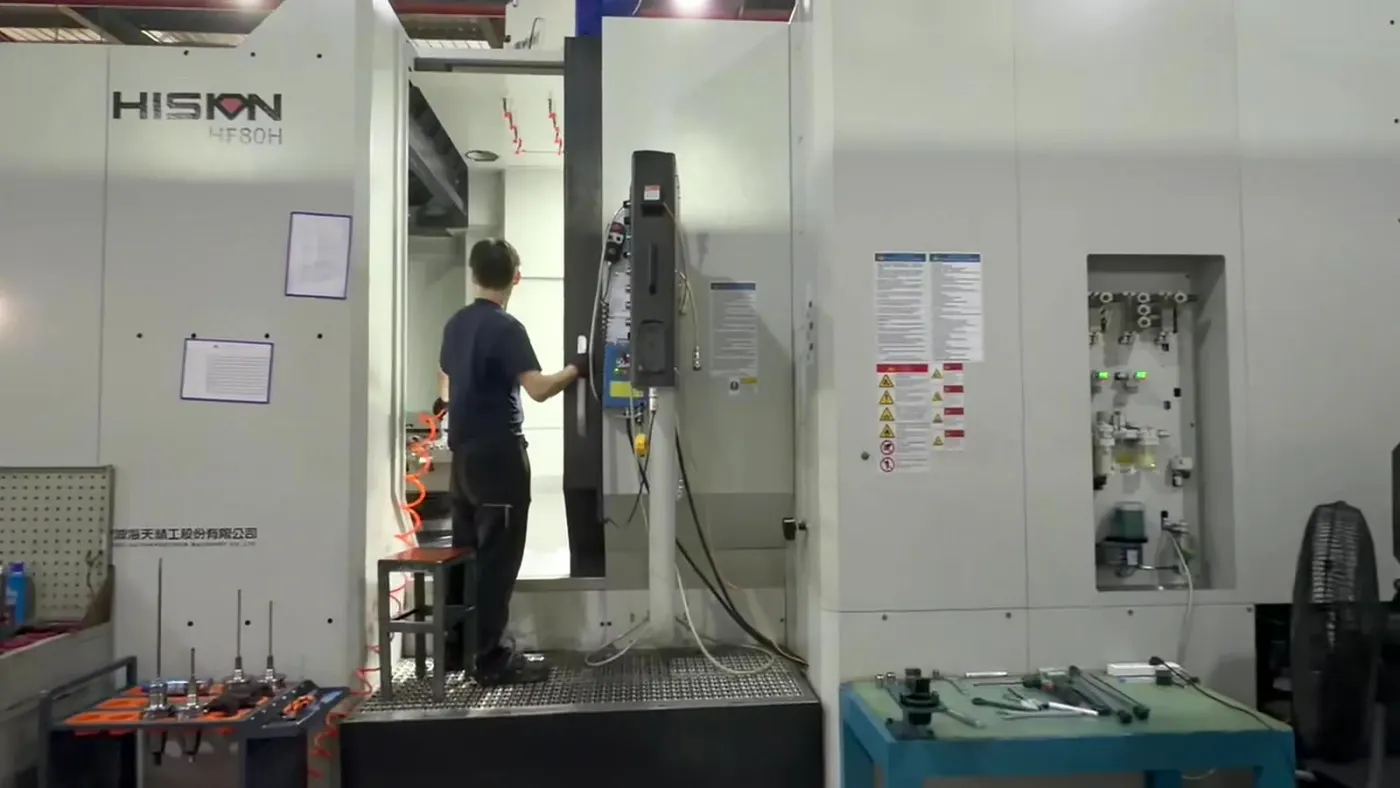

Machining and inspection therefore protect the datums and assembly interfaces that keep the flow system aligned.

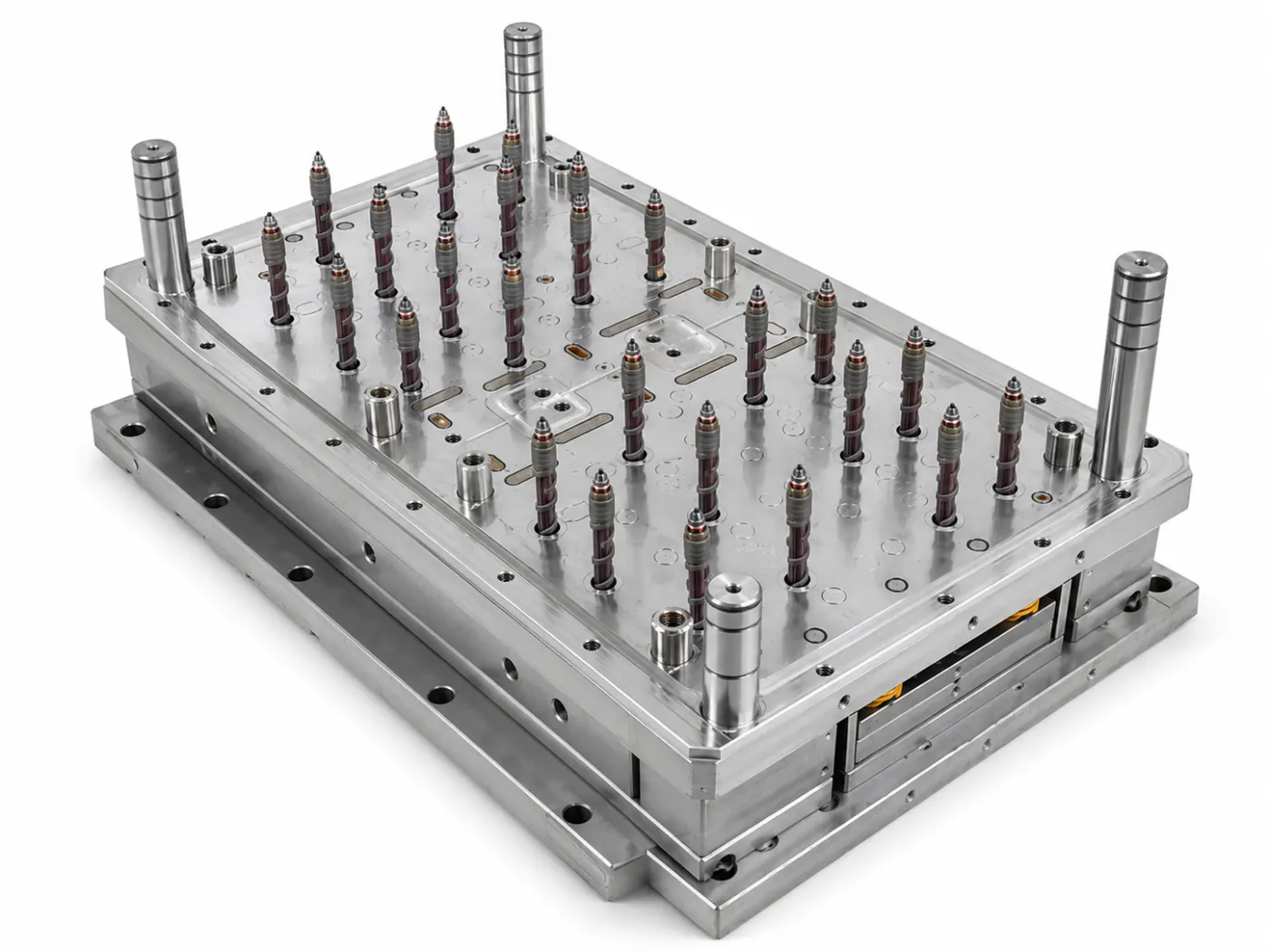

04 / Mould assembly
Valve movement, heating, sensing, sealing, cooling and mould movement are checked together before production validation.
The same project team can respond to runner, mould and process questions without splitting responsibility between unrelated suppliers.

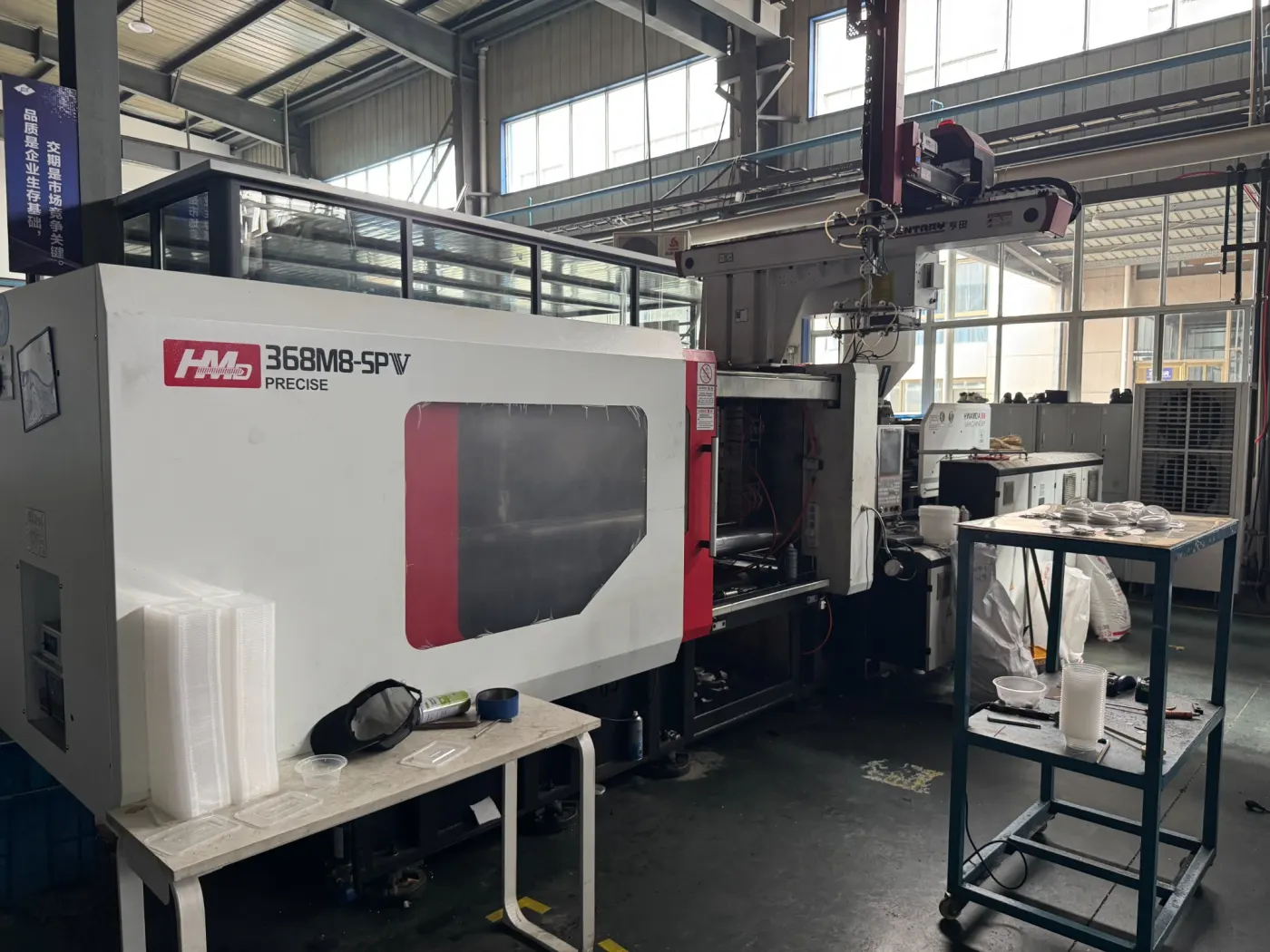

05 / Trial validation
The mould trial reviews filling sequence, cavity weight, part appearance, dimensions, gate result and process stability.
Findings are returned to the hot runner, mould and process teams so adjustments address the complete system instead of one isolated symptom.
Flow balance engineering
The critical path stays connected from product review through assembly and production trial.
Product thickness, appearance, gate limits and cavity layout define the flow problem.
Manifold, channels, nozzles and valve control are matched to the real mould structure.
Machining and inspection protect the datums required for sealing and gate alignment.
Trial evidence compares cavity behaviour and returns findings to engineering.
Start with the production requirement
Hot runner selection becomes more reliable when the gate, machine, resin, label and output conditions are known.
Send project informationBuyer questions
Runner geometry, gate position, cooling, cavity layout, product appearance and service access affect one another. Reviewing them as one system reduces late design conflicts.
Yes. The project can be engineered around the agreed hot runner standard when the buyer's plant has a preferred brand or maintenance requirement.
The trial plan can compare filling sequence, part weight, appearance, dimensions, temperature behaviour and process stability across cavities under the agreed production condition.
Useful inputs include cavity count, resin, part weight, gate appearance limits, label area, machine injection performance, preferred runner brand, maintenance standard and required production output.
Valve-gate timing can influence filling sequence, gate mark quality, pressure balance and repeatability, which is important for visible IML containers, thin-wall lids and multi-cavity packaging moulds.
